|Place of Origin:||China|
|Certification:||CE ISO FCC SGS|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Carton or wooden packing|
|Payment Terms:||Western Union, T/T, L/C, MoneyGram|
|Zone:||18 Detection Zones||Alarm:||Sound And Light|
|Detection Speed:||100person/min||Alarm Display:||Led Lighting Alarm|
|Control Unit:||The Whole PCB Board||Detection Object:||Ferrous And Non-ferrous Metals|
|Software Function:||Self-diagonal And Calibraton Function||Digital Count:||Passage And Alarm Count|
|Tunnel Size:||700-900mm Customied||Body Temperature:||Above 37.3 Degree Alarm|
security walk through metal detector,
walk through body scanner

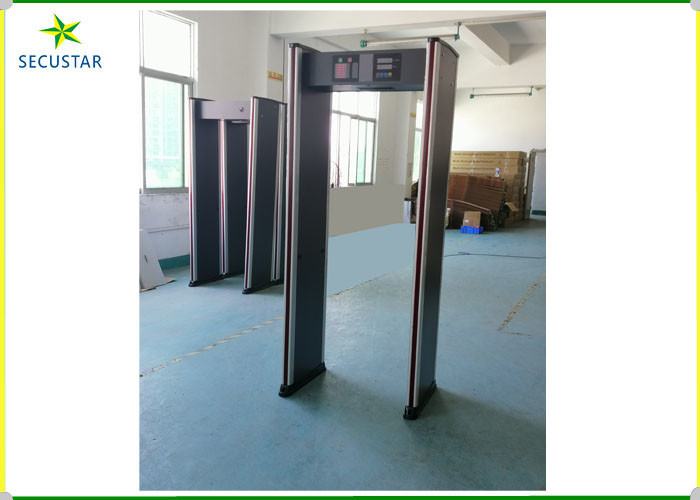

Security Door Frame Metal Detector Door PS-IIIC with Body Temperature Test and alarm :
Infrared Sensor 18 Detection Zones Alarm Walk Through Metal Detector In Hospital Entry
Walk-through body temperature detector (automatic scan medical body thermometer) detects body temperature & hand-foot-mouth disease ( HFMD ) body temperature & H1N1 swine flu body temperature & H3N2 flu body temperature & H7N9 bird flu body temperature & Ebola virus disease (EVD) human fever body temperature and flu body fever temperatures.
Walk-through body temperature detector has a high sensitive detection temperature, detects a wide range & fast speed, does not interfere with the measured target, and its use is safe. Only when a human passes through it in the body detection range, the detector shows an immediate human body surface temperature, the operator can obtain accurate data. If they are suspicious fever patients, it will immediately report to the police apparatus, it is a timely and effective manner to prevent the flow of flu cross-infection.
Product Main Characteristic:
Product detail description :
Non-contact testing, safe and reliable, floor design, after the probe scans 0.3 ~ 0.5 seconds, it displays test results & the test results are digital show. The red & green light-emitting diodes display the work state to be clear and intuitive, measurement system to automatically open. 2. Many vertical scanning probes are in order to adapt to different height people for accurate measurement. An automatic voice broadcast system broadcasts monitoring results.
After starting the detector, a green light flashes. When it encounters a high temperature, the green light goes out, is turned off, and in the meanwhile the red light flashes and it gives an alarm sound.
( Optional): After starting the detector, a green light does not brighten, when someone passes through it, the green light flashes in a normal temperature, but in a high temperature the red light flashes and it gives an alarm sound.
1. Door Size: 2100 mm (H) x 980 mm (W) x 880 mm (depth). 2. Repeated measurement and time interval: 0.5 seconds. 3. Relative humidity: 80%. Voltage: 110V, 220V (± 10%), 50Hz/60Hz. Temperature resolution: 0.1º C. Door frame made by alloy, its appearance is high-grade. Alarm temperature: 37.5 º C, ( this temperature can be free to be set, for example: 37 º C, 37.1 º C, 37.2 º C, 37.3 º C, 37.4º C and so on ). The factory setup is 37.5 º C, the body temperature exceeds it for the alarm. Fever alarm. Install more than 13 medical detection body temperature sensors in this system, medical body temperature sensors manufactured in Germany.
|Power consumption||15w Max|
|Working temperature||-20°c to 60°c|
|Outer frame size||2200mm x 820mm x 580mm|
|Inner frame size||2000mm x 700mm x 522mm|
|Working Frenquency||1-100 chanel|
