SECUSTAR Security Solution Supply
| Place of Origin: | China |
|---|---|
| Brand Name: | SECUSTAR |
| Certification: | CE ISO SGS FCC |
| Model Number: | ETD-190 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Special Plastic Box 50*30*50 cm |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs/month |
| Screen: | 3" TFT Color Display Screen | Technique: | Fluorescent Polymer Sensing Technology |
|---|---|---|---|
| Detection Speed: | Less Than 6 Second | Device Model: | ETD-190 |
| Sample Collection Ways: | Trace Particles And Vapors (Inhalation) | Alarming Type: | Visual And Audible |
| Rechargeable Battery: | 8-10 Hours Working Backup | Operation Temperature: | -20℃ To 55℃ |
| Net Weight: | Only 1.7 Kg | ||
| High Light: | trace detection equipment,drug detection equipment |
||

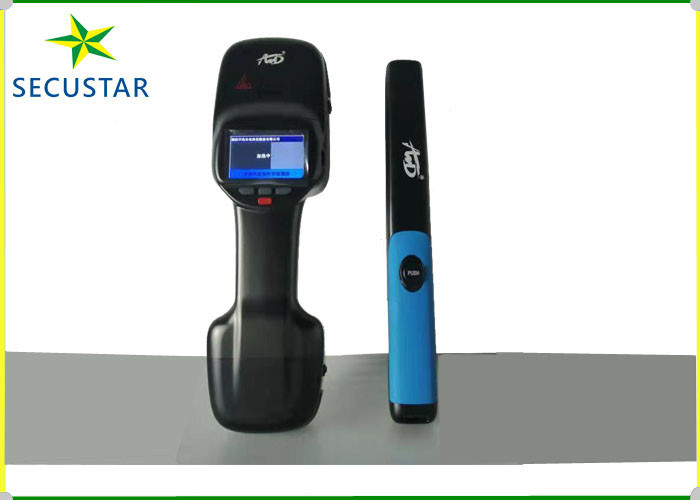

Portable Explosive Trace Detection ETD-190 adopt fluorescent polymer sensing technology, unique designed and based on the change in photometric intensity of fluorescence emitted by fluorescent polymers.This Explosive Detector now has becoming a preferred explosive detection device for armed police, public security and other government departments. The Explosive Trace Detector can detect many kinds of explosive, (military explosive, commercial explosive, oxides explosive and plus ammonium nitrate explosive). Operator can sampling the target by wiping(particular) and closing the bottle mouth(liquid,vapor). Then the Handheld Explosive Trace Detector can do detecting. On operating performance, it also now proved one of the safest and the most sensitive explosive detector in the market. ----- with rugged metal casing, starts from cold within two mins, and backup by a eight-hours battery. Its detection speed is less than 6 seconds, detectability up to 0.1 pictogram TNT, and more than 30 explosives can be detected.
Technology & Applications & Feature: the Portable Explosive Detector using fluorescence polymer sensing technology, different explosive material could be identified. When detected explosives, the screen will give alarm, and the fluorescence polymer technology is very safe and environment good and no harm to human. Can inspect over 30 kinds of explosives. The Explosive trace detector can use at all places that require Anti-terrorism task force, or use at Aviation security, or for Public security, or Boarder defense, or Railway stations etc. places. Below are some of the Handheld Explosive Detector technical features.
* Sample collection ways: Trace Particles and Vapors (Inhalation)
* Explosive detected: Military and plastic explosives, including : TNT, C4, RDX, BP, PETN, AN and others. Improvised and homemade explosives, including TATP, HMTD, Urea Nitrate, Ammonium Nitrate and others. Propellants and Taggants, including : Black and Smokeless powder, EGDN and others. Additional explosives upon expandable threat library.
Prodcut Base Specificatons:
| Weight(Battery included ) | 1.65kg | Weight(Packingbox included ) | ≤8kg |
| Dimensions(mm) | 365*108*63 | Dimensions(Packingcarton)(mm) | 465*390*235 |
| Temperature(˚C) | -20～55 | Adapter supply voltage | 100～220V |
| Storage Temperature(˚C) | -20～55 | Adapter supply frequency | 50Hz |
| Rated voltage | 7.4V DC | Rated power | 9w |
Explosive Trace Detection Steps:
