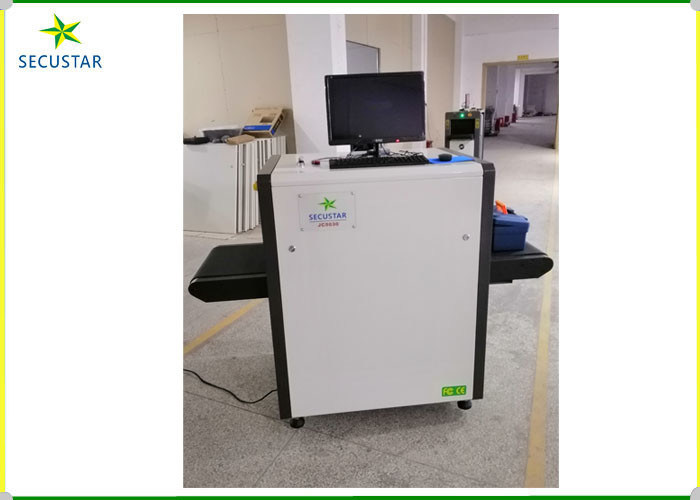

19 Inch Monitor Airport X Ray Baggage Scanner Real Time Diagnostics Function

Basic Information

Place of Origin:	China
Brand Name:	SECUSTAR
Certification:	CE ISO FDA FCC
Model Number:	JC5030A

Minimum Order Quantity:	1
Price:	1-10000
Packaging Details:	wooden
Delivery Time:	5-7 days
Payment Terms:	L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability:	200units/month

Contact Now

Detail Information
Product Description

Tunnel Size:	50cm * 30cm	Alarm:	Danger Objects Alarm
Image:	7 Color	Monitor:	19 Inch
Function:	Real-Time Diagnostics	Zoom:	1-64x
Material:	316 Stainless Steel	Keyboard:	Blue Teeth , Wireless
High Light:	x ray bag scanner , package x ray scanner

The Cheapest X ray Baggage Scanner and X ray Parcel Scanners JC5030 Model:

Standard Features:

7 Colour Imaging
9 Quadrant Zoom
Atomic Z-Number Measurement
Auto Image Archiving
Baggage Counter
Colour and Black/White Imaging
Continuous Scanning
Continuous Zoom Up to 64x
Geometric Image Distortion Correction
High Penetration Function
Image Annotation

Image Review
JPEG Conversion
Material Discrimination
Multi-Tier Accessibility
Network Ready
Organic/Inorganic Imaging
Picture Perfect
Print Image Capable
Pseudo Colour
Real-Time Image Manipulation

General

Conveyor Capacity: 165 kg (364 lbs) Evenly Distributed Load
Conveyor Height: 71.6 cm (28.2”) from Floor
Conveyor Speed: 23 cm/s (45 ft/min) Forward or Reverse
Net Weight: 380 kg (820 lbs)
Shipping Weight: 400 kg (1080 lbs)
Tunnel Size (WxH) : 50.0 cm x 30.0 cm,

Technical

Steel Penetration: 39 mm Typical, 37 mm Standard
Wire Resolution: 40 AWG Typical, 38 AWG Standard

X-Ray Generator & Image Performance

Beam Direction: Diagonally Upward
Cooling: Sealed Di-Electric bath with Forced Air
Duty Cycle:100%, No Warm-Up Procedure Required
Tube Current: 0.7 mA
Voltage: 80kV, Operating at 80-150kV

Computer & Video

Display Resolution: 1280 x 1024; 24 Bit/Pixel Color
Display Type: 19” Flat Panel Colour Monitor
Memory: 4 GB RAM
Platform: Windows7
Power Conditioner: Automatic Voltage Regulator (AVR), 600VA
Storage Capacity: 1TB HDD, 240 GB SSD

Environmental

Humidity: Up to 95% Non-Condensing
Operating Temperature: 0ºC to 40ºC / 32ºF to 104ºF
Storage Temperature: -20ºC to 60ºC / -4ºF to 140ºF

Electrical

System Power: 110 VAC +/- 10% 50/60Hz, 15 Amp Max , 220 VAC +/ 10% 50/60Hz, 10 Amp Max

Health & Safety

Film Safety: Guaranteed up to ISO 1600 (33 DIN)
Compliant with USFDA Centre for Devices and Radiation
Health Standards for Cabinet X-Ray Systems (21-CFR 1020.40)
Typical radiation leakage is less than 0.1 mR/h (Leakage less than 0.5 mR/hr permitted by U.S. Federal Standards)

Image System
X-ray Sensor	L-Shaped Photodiode Array (Dual-energetic) , 12bit Deep
Image Display	High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement	1-64X zoom enlargement continuity, Color or B/W, negative, high/low Penetration, Magnification, organic /inorganic Stripping, Edge enhancement, Darken/Lighten
Image Recall&Scroll	All preceding images recallable,move image forward and backward on screen
Explosives & Narcotics Detection	Explosives & narcotics alarm and highlight according to atomic No signature
High Density Region Alarm	Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection	Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive	Up to 150,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP,PNG and other general formats
Miscellaneous Functions	Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, system setting, system log/exit, system standby and stimulant training,generator preheating auto,record print
Network Applications	Multiple remote applications available based on internet and windows platform, such as image centralized storage and identify, recheck at workstation, and Teamview
Images process	32bit real time processing ,4colors analysis, Images displayed marked date and ID No, Count the number of bags
Auto Scanning function	Sensor built in entry of tunnel ,when we put object on conveyor, the machine will start to scan the objects automatically,need not to manual operate it.
Bi-Direction Scanning	Two directional scanning forward and backward ,Images will display both ways on the screen,user can set moving direction in the system .
