33 Alarm Zones Walk Through Metal Detector Designed Can Be Used In Police Office

Product Details

Place of Origin: CHINA

Brand Name: SECUSTAR

Certification: CE FCC SGS ISO

Model Number: JC1833

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: Negotiable

Packaging Details: Carton packing 230*45*38 cm ; 80*28*26 cm

Delivery Time: 5-8 days

Payment Terms: T/T, Western Union, L/C, D/P, D/A

Supply Ability: 1000units/month

Get Best Price
High Light:

multi zone door frame metal detector

,

gate metal detector

Alarm Zones:
33 Alarm Detection Zones
Auto Count:
Passage And Alarm Number
Alarm Display:
Led Lighting Bars
Sensitivity:
1-300 Level Adjustable
Warterproof:
IP67
Safe Level:
Without Radiation ,passwords Protection
Material:
Aluminum Control Box
Control Unit:
Smart Model Designed
Signal Cable:
Left And Right Side
Detection Object:
Ferrous And Non-ferrous Metals
Power Plug:
Different Area Standard Optional
Tunnel Size:
Inner Width 760mm
Alarm Way:
Sound And Led Light
Software Function:
Self-diagonal And Calibraton Function
Alarm Zones:
33 Alarm Detection Zones
Auto Count:
Passage And Alarm Number
Alarm Display:
Led Lighting Bars
Sensitivity:
1-300 Level Adjustable
Warterproof:
IP67
Safe Level:
Without Radiation ,passwords Protection
Material:
Aluminum Control Box
Control Unit:
Smart Model Designed
Signal Cable:
Left And Right Side
Detection Object:
Ferrous And Non-ferrous Metals
Power Plug:
Different Area Standard Optional
Tunnel Size:
Inner Width 760mm
Alarm Way:
Sound And Led Light
Software Function:
Self-diagonal And Calibraton Function
33 Alarm Zones Walk Through Metal Detector Designed Can Be Used In Police Office

Factory Price 33 Alarm Zones Walk Through Metal Detector Designed Can Be Used In Police Office

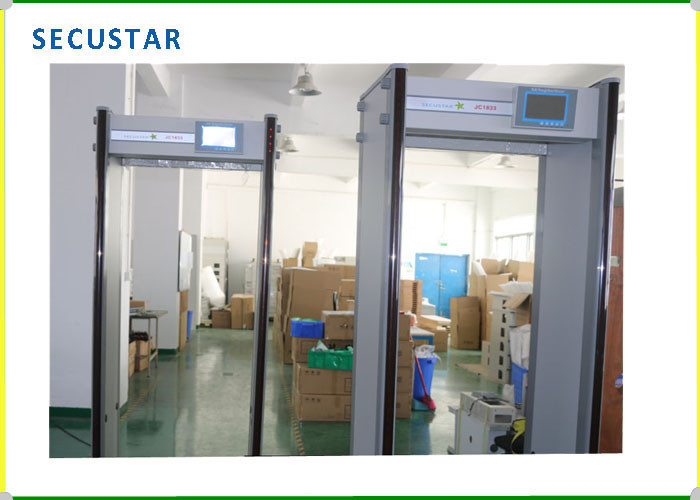

Security Checking Walk Through Metal Detector JC1833
 Are you seeking for high performance and reasonable factory price walk through scanners?  Just this Model JC1833 .
JC1833 walk through metal detector with 33 detection zones waterproof IP67 , It is able to work in outdoor and indoor lasting working 72hours , the walk through gate inner width is 760mm designed according to international produce standard ,There  is a 7 inch big LCD display on control box , the gate with power saving feature , when security checking area without anyboy passing the gate for 5min , the gate will enter into sleeping situation without power comsumption . once passage walk through it ,the detector will auto detection immediately .

SECUSTAR JC1833 can be built in rechargeable battery for 4-8hours power backup also night vision camera , especially the gate connect to internet to reach remote control and monitoring via secustar APP software , users are able to research history records in mobile or computer easily.

If you want to learn more about walk through scanner JC1833, please just feel free to contact us .we will give you details catalog or videos to check .



Technical Specification

Electric current AC110-240V,50/60Hz
Working temperature -20°c to 70°c
Power consumption Max 15w
Outer frame size 2200mm x 880mm x 600mm
Inner frame size 2000mm x 760mm x 600mm
Gross weight 75KG





Product Main Characteristic:


►The frequency adjustable,100 units gates work side by side without interference.


►AutoScan environment interference at site, auto adapt to working place


►The gate with Power-saving mode, system sleeping and wake up automatically


►4000~8000adjustable operating frequency and multiple channels.


►High density fire proof door panels and control head made in aluminum.


►MBSU battery backup, in time power transfer(optional)



33 zones to precisely identify multiple target locations


►user can set 6 ,11 or 33 zones freely to work at software.


►It is able to detect ferrous and non-ferrous articles


►Sound and light alarm, the gate waterproof IP65


►Friendly 7 inch LCD operate interface with function keys.


►Automatically count passengers and alarm times


►Random alarm features adjustable from 0 to 50%.


►Self-diagnostic procedures and calibration automatically


►Modular structure, 30 detection programs for different spot


►Harmless to pregnant woman and heart pacemaker


►Tamper-proof, operate program is protected by password


►Led alarm bars built in front of door panels that is for accurate alarm display


►DSP digital technology, 16 kinds Sound alarm, 20 level volume adjustable




Manufactuer support:

  1. Product design, technology development, parts processing and sales integration services
  2. One of the world's top four brands, leading technology, quality first, service first-class
  3. Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
  4. Agency cooperation,ODM,OEM
  5. Sales of a complete set of technical solutions
  6. Technical guidance and training for customers
  7. 24months quality warranty ,24hours online technology support.


Applications :
Airports and Seaports, Electronic Factory, Government Buildings, Embassy, Police office, Court, Prisons and jails,
Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos,Power plants,
Research Sites,Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs,
secret Meetings and VIP Security, Gymnasium .


33 Alarm Zones Walk Through Metal Detector Designed Can Be Used In Police Office 0


The Scanner Dimensions

Passageway Interior Size

Width 30" (0.76 m)
Height 80" (2.03 m)
Depth 23" (0.58 m)


Overall Exterior Size

Width 35" (0.90 m)
Height 87" (2.21 m)
Depth 23" (0.58 m)


Shipping Size

Width 35.5" (0.90 m)
Height 91.5" (2.32 m)
Depth 6.25" (.16 m)

Weight: 143 lbs. (64 kg)
Shipping Weight: 165 lbs. (74 kg)
