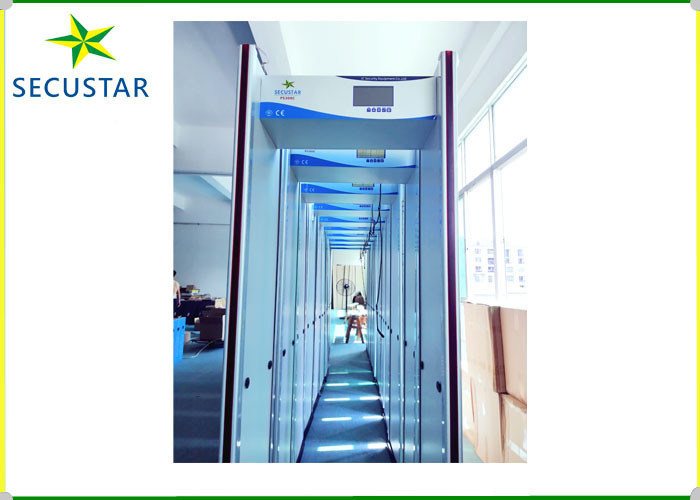

The walk through scanner PS-300C with 24 detection zones ,7inch big LCD screening to display alarm
and passage count number , alarm records saved in software , there are 30 programes setting , 1-300
high sensitivity adjusted by users easily , working frequency self-calibraition ,more affect for preventing
mistake alarm . the gate made in accrodance with EN60950, WN50081-1, And EN50082-1 CE Certificate;
ISO 9001:2000 Certificate, National standard .It is easily detect weapons, such as knifes and guns, and any metal article which is hidden in human body. PS-300C model is very popular in prisons , court, bank, and
police offices , government offices .
80V to 250V
8W, Max 15w
2220mm (h) x 940mm (w) X 610mm (d)
2000mm (h) X 820mm (w) X 610mm (d)
Alarm Walk Thru Scanner Specification
1.Updated DSP technology,more faster signal transmmison .
2.Automatically Calibration and Anti-shock
3.Detect zone: single zone, 8 detect zone, 16 detect zone, 24 zones optional to clients.
4.High sensitivity, accurate alarm each zone
5.Self-diagnostic procedures, LCD and led light bars self-testing .
6.Tell the problem in words when gate with any hardpart problem .
7.Input MBSU battery backup, in time power transfer.
8.1-300 sensitivity level adjustable
9.Friendly 7 inch LCD operate interface, local language support.
10.Modular structure to easy after service
11.Available 100 operate frequency, enable max 100pcs WTMD work side by side.
12.Auto Scan environmental interference at site.
13.Automatically adapt to the working environment.
14.Good performance in anti-interference ability.
15.Sound and light alarm , led alarm lighting bars built in front of door panels .
16.Calculate traffic flow and resultant alarms
17.Tamper-Proof: operate program is protected by password.
18.Other developing function: Solar Power Network support ,remote control .
1, We carry 18 months quality warranty;
2, Spare parts free of charge supply within warranty period ;
3, 24 hours online for after sales service ;
4, The sample supply for sole agent showroom or security fair .
