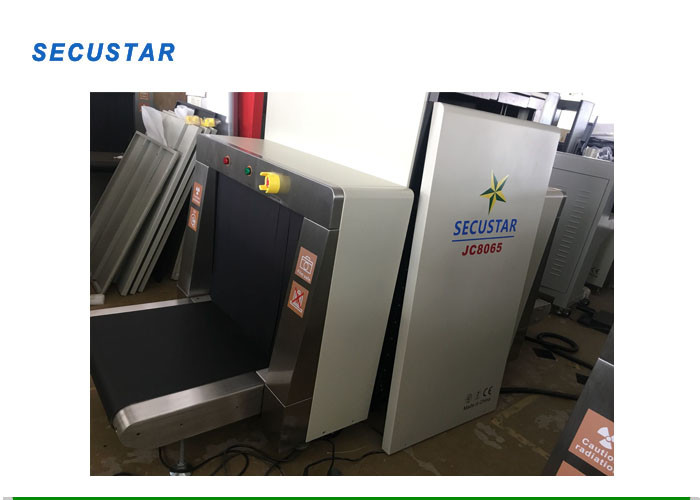

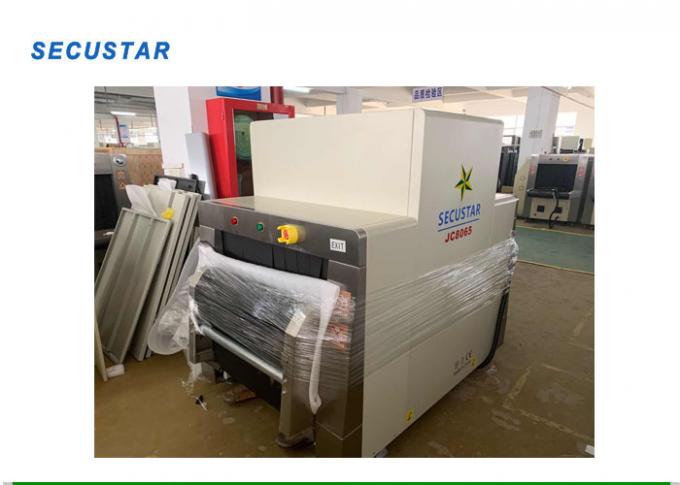

SECUSTAR XRay devices consist of in three main components. The first component is the control panel. The control panel operator is the location of the buttons for controlling the device. The second component is the screen. The screen contains images of the items that have passed through the device. The third and final component is the x-ray unit. Where the X-rays are sent, where the goods are placed and detected, where the carrier band is located. With the JC8065 xray detector, you can quickly and easily detect all cutting and drilling tools, such as guns, knives, and weapons, and get 100% confidence in the areas where they are used.
Tunnel Dimension: 800 mm (Width) * 650 mm (Height)
Conveyor (Belt) Band Speed: 0.2m / sec.
Conveyor (Carrier) Band Maximum Load: 200kg
Dose Per Exam: <1.6μGy / hour
Penetration: 34mm Steel
Film Safety: Guaranteed ISO1600 Film
X-ray Leakage: <0,1 μGy / h (5 cm away from external body)
Direct Production: Down
Angle Production: 80 degrees
Anode Voltage: 140KV
Anode Power: 0,4mA
Cooling / Work time (duty cycle): Oil Cooling / 100%
Zone and Zoom: 1-9 image zones, enlargement of 2, 4, 8, 16 times, full screen continuous observation.
X ray Image System
L-Shaped Photodiode Array (Dual-energetic) , 12bit Deep
High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
1-64X zoom enlargement continuity, Color or B/W, negative, high/low Penetration,
Magnification, organic /inorganic Stripping, Edge enhancement, Darken/Lighten
All preceding images recallable,move image forward and backward on screen
Explosives & Narcotics Detection
Explosives & narcotics alarm and highlight according to atomic No signature
High Density Region Alarm
Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection
Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Up to 150,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP,PNG and other general formats
Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, system setting, system log/exit, system standby and stimulant training,generator preheating auto,record print
Multiple remote applications available based on internet and windows platform, such as image centralized storage and identify, recheck at workstation, and Teamview
32bit real time processing ,4colors analysis, Images displayed marked date and ID No, Count the number of bags
Auto Scanning function
Sensor built in entry of tunnel ,when we put object on conveyor, the machine will start to scan the objects automatically,need not to manual operate it.
Two directional scanning forward and backward ,Images will display both ways on the screen,user can set moving direction in the system .
