Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel

Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel supplier
Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel supplier Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel supplier Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel supplier Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel supplier
Basic Information
Place of Origin: China
Brand Name: SECUSTAR
Certification: CE ISO FCC SGS
Model Number: PS-300
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton or wooden packing
Delivery Time: 5-8days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 3000pcs/month
Contact Now
  • Detail Information
  • Product Description
Foot Cover: Grey Or Black Plastic Covers Software Function: Self-diagonal And Calibraton Function
Warterproof: IP55 Level Signal Cable: Left And Right Side
Detection Zone: 18 Detetion Zones Sensor Qty: 4 Pcs Sensors
Alarm Ways: Sound And Light Detection Speed: 100person/min
Alarm Display: Led Lighting Alarm Operation: Friendly Using And Remote Control
Control Unit: The Whole PCB Board Tunnel Size: 700-900mm Customied
Coil Circle: 6 Coil Circles Each Door Panel Digital Count: Passage And Alarm Count
Sensitivity: 100 Level Adjustable Detection Object: Ferrous And Non-ferrous Metals
Safe Level: Without Radiation ,passwords Protection Design Style: Wheelchair Passing Width
Power Plug: EU UK And US Standard
High Light:

metal detector security doors

,

multi zone door frame metal detector

 Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel                      Led Door Frame Metal Detector Door PS-300 :

Door Frame Metal Detector PS-300 is hot sales in the world ,power on self-testing,unique 5 digital number count for passage and alarm time.the gates are able to work side by side , even place it closely with x ray scanning machines. there will be not any interference and without mistake alarm happened .

Walk through metal detector is normally associated with security searching and capable to detect metallic objects on people passing through the door , They are available with different numbers of detection zones, the greater number of detection zones the more accurate the location of metal object on the body can be determined and save operator time .The model PS-300 walk through metal detectors makes use of state of the art DSP technology, auto calibration and self-testing ,18 detection zones and five digital number count, it is able to connect to security door or turnstile to work .





Door Frame Metal Detector Main Characteristic:

  • ►DSP digital technology, Sound alarm, volume adjustable
  •
  • ►Modular structure is easy to do after sales service.
  •
  • ►The frequency adjustable ,100units gates work side by side without any interference each other
  •
  • ►Harmless to pregnant woman and heart pacemaker
  •
  • ►Tamper-proof, operate program is protected by password
  •
  • ►One power port on head and two power ports in feet end.
  •
  • ►MBSU battery backup, in time power transfer(optional)
  • ►06 or18 zones setting freely, multi-zones detection alarm separately; waterproof IP55
  •
  • ►LED digital display with function press keys, 5 bit count
  •
  • ►Sensitivity adjustable, overall 0-256 level, each zone also 0-256 level sensitivity adjustable.
  •
  • ►It is able to detect ferrous and non-ferrous articles
  •
  • ►Led alarm bars built in front of door panels that is for accurate detection and alarm display
  •
  • ►Automatically count passengers and alarm times
  •
  • ►Self-diagnostic procedures and calibration



Technical Specification:

Electric current AC210-240V,50/60Hz
Power consumption 15w
Working temperature -20°c to 60°c
Outer frame size 2200mm x 820mm x 580mm
Inner frame size 2000mm x 700mm x 522mm
Working Frenquency  1-100 chanel
Gross weight 65KG





Manufactuer support:

  1. Product design, technology development, parts processing and sales integration services
  2. One of the world's top four brands, leading technology, quality first, service first-class
  3. Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
  4. Agency cooperation,ODM,OEM
  5. Sales of a complete set of technical solutions
  6. Technical guidance and training for customers
  7. 24months quality warranty ,24hours online technology support.



Applications :

Airports and Seaports, Electronic Factory, Government Buildings, Embassy, Police office, Court, Prisons and jails,

Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos,Power plants,

Research Sites,Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs,

secret Meetings and VIP Security, Gymnasium .

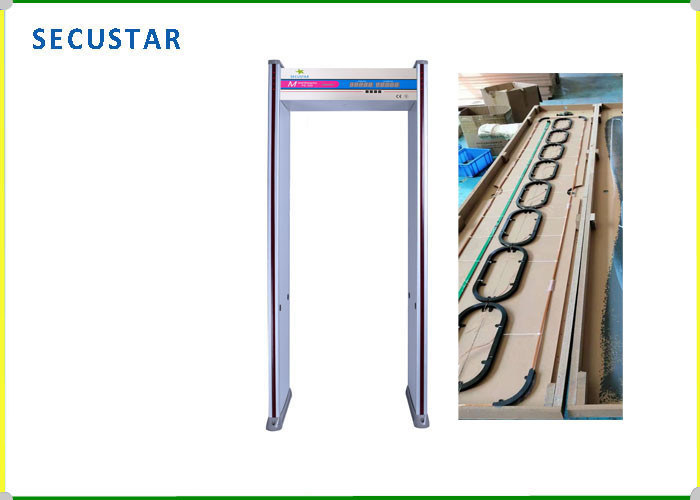

Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel 0







Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel 1

Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel 2

Guns and Knife Detection Door Frame Metal Detector With Led Sensitivity Level Indication On Panel 3
