Line Scanning CCD mobile Under Vehicle Inspection System For Undercarriage Checking

Product Details

Place of Origin: MADE IN CHINA

Brand Name: SECUSTAR

Certification: CE ISO FCC

Model Number: JC3000

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: Negotiable

Packaging Details: wooden packing

Delivery Time: 15 days

Payment Terms: T/T, Western Union, L/C, D/P

Supply Ability: 200 sets / month

Get Best Price
Highlight:

under vehicle surveillance system

,

under vehicle scanning system

Sensor:
Line Scan CCD
Resolution:
5000*2048 Pixels
Power Supply:
24VDC, 3A
Illumination:
LED
Materia:
Aluminium Alloy
Controller:
2 Channel Coil
Weight Capacity:
Max 20Ton
Waterproof:
IP68 Level
Computer:
Laptop Support
View Angle:
175 °
Sensor:
Line Scan CCD
Resolution:
5000*2048 Pixels
Power Supply:
24VDC, 3A
Illumination:
LED
Materia:
Aluminium Alloy
Controller:
2 Channel Coil
Weight Capacity:
Max 20Ton
Waterproof:
IP68 Level
Computer:
Laptop Support
View Angle:
175 °
Line Scanning CCD mobile Under Vehicle Inspection System For Undercarriage Checking

JC3000 Under Vehicle Inspection System

JC3000 Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom. JC3000 Under Vehicle Inspection System greatly improved vehicles safety inspection speed and accuracy, reduced investment in human soureces , it is easy for parking security management .

Range of application icnlduing :1. Airport,prison,custom and other government department 2. Large public parking spot entrance and exit   3. Events,exhibition 4. Military,prison and other important checkpoints in conference center.





Main Features:

  1. Auto digital line scan camera, with high-resolution and clarity of the image.

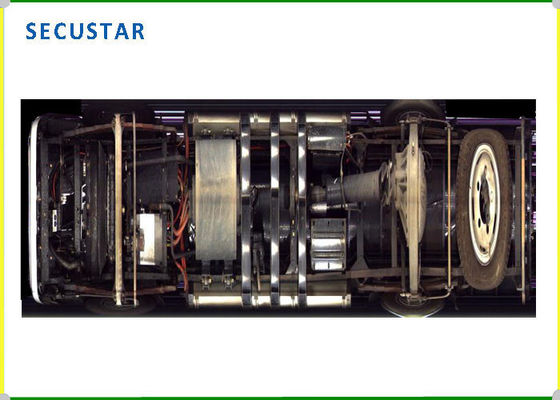

  2. The complete image of under vehicle scanning, without any omissions, and the image is clear,complete,no distortion, can be clearly observed that the object is not less than 2mm in diameter.
  3. IP68 high protection grade, anti-pressure shock, adapt to any climatic environments.
  4. Preparation of inspection processes to meet a variety of on-site needs.
  5. Multiple scene image monitoring, recording function.
  6. Multi-language user interface design.
  7. Support image recognition and RFID technology for vehicle identification.
  8. Strong scalability to easily achieve a variety of system linkage control. (E.g.:road barrier, etc.).
  9. Support multiple devices networked control functions.
  10. You can choose Laptop to replace PC to monitor .(optional)



Technical parameters:



  1. Vertical resolution of the image: 5000*2048 pixels
  2. Check the width viewing angle: not less than 4 meters
  3. Speed of vehicle: 1~65km/h
  4. Effective FOV: not less than 170°
  5. Auxiliary light: 100W
  6. Bearing weight: more than 40T
  7. Waterproof grade: IP68 meet the condition of working around the clock
  8. Scanning device weight: 18KG
  9. Scanning device volume: 410mm×380mm×93mm
  10. Communication interface: RS232/RS422
  11. Operating Temperature: -20℃ to 55℃
  12. Storage temperature: -40℃ to +75℃
  13. Operating voltage: 110-240V AC, 50-60HZ
  14. Camera: Sensor: line scans CCD, Resolution:
  15. Power Supply: 24VDC, 3A Pixel : 2096 x3



System Host

1 Brand: Grantech (UFO6377H-SP1-953)
2 CPU: Intel®Core(TM) 2 Duo CPU P8600 2.4GHz or higher
3 Memory:2G( optional 4G)
4 Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
5 Hard Disk:SATA2 Hard Disk 500G
6 Dual LAN (At least one Intel Gigabit)
7 USB2.0 (Up to 4 pieces)
8 Monitor: 22inch LCD, resolution up to 1920*1080





Case internal layout

Case bottom Radiator Space for wire rod Side cover
Keyboard Monitor Case upper cover Cover plate
Slide tray Tripod Computer mainframe box Power cable
LPR Camera Slide tray lock Space for scan unit

Power switch
