Self - Diagnostic Door Frame Metal Detector , Walk Thru Metal Detectors For Security

Self - Diagnostic Door Frame Metal Detector , Walk Thru Metal Detectors For Security supplier
Self - Diagnostic Door Frame Metal Detector , Walk Thru Metal Detectors For Security supplier Self - Diagnostic Door Frame Metal Detector , Walk Thru Metal Detectors For Security supplier Self - Diagnostic Door Frame Metal Detector , Walk Thru Metal Detectors For Security supplier Self - Diagnostic Door Frame Metal Detector , Walk Thru Metal Detectors For Security supplier
Basic Information
Place of Origin: China
Brand Name: SECUSTAR
Certification: CE ISO FCC SGS
Model Number: PS-300B
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton or wooden packing
Delivery Time: 5-8days
Payment Terms: Western Union, T/T, L/C, MoneyGram
Supply Ability: 3000pcs/month
Contact Now
  • Detail Information
  • Product Description
Alarm Zone: 6/18 Detetion Zones Control Unit: The Whole PCB Board
Detection Speed: 100person/min Digital Count: Passage And Alarm Count
Software Function: Self-diagonal And Calibraton Function Alarm: Sound And Light
Alarm Display: LCD Color Screen Sensor: 4 Pcs Sensors
Foot Cover: Grey Or Black Plastic Covers Warterproof: IP55 Level
Signal Cable: Left And Right Side Sensitivity: 100 Level Adjustable
Detection Object: Ferrous And Non-ferrous Metals Safe Level: Without Radiation ,passwords Protection
Design Style: Wheelchair Passing Width Operation: Friendly Using And Remote Control
Tunnel Size: 700-900mm Customied Power Plug: EU UK And US Standard
Coil Circle: 6 Coil Circles Each Door Panel
High Light:

multi zone door frame metal detector

,

gate metal detector

LCD screen 18 detection zones door frame metal detector with remote controller for public security.

Security Door Frame Metal Detector Door PS-300B :

Walk through metal detector is normally associated with security searching and capable to detect metallic objects on people passing through the door , They are available with different numbers of detection zones, the greater number of detection zones the more accurate the location of metal object on the body can be determined and save operator time .The model PS-300 walk through metal detectors makes use of state of the art DSP technology, auto calibration and self-testing ,18 detection zones and 7inch color screen display and count, it is able to connect to security door or turnstile to work .





Technical Specification:

Electric current AC210-240V,50/60Hz
Power consumption 15w
Working temperature -20°c to 60°c
Outer frame size 2200mm x 820mm x 580mm
Inner frame size 2000mm x 700mm x 522mm
Working Frenquency 1-100 chanel
Gross weight 65KG






Product Main Characteristic:

  • ►06 or18 zones setting freely, multi-zones detection alarm separately; waterproof IP55
  •
  • ►LCD screen display with function press keys, automatic count and calibration .
  •
  • ►Sensitivity adjustable, overall 0-256 level, each zone also 0-256 level sensitivity adjustable.
  •
  • ►It is able to detect ferrous and non-ferrous articles
  •
  • ►Led alarm bars built in front of door panels that is for accurate detection and alarm display
  •
  • ►Automatically count passengers and alarm times
  •
  • ►Self-diagnostic procedures and calibration
  •
  • ►DSP digital technology, Sound alarm, volume adjustable
  •
  • ►Modular structure is easy to do after sales service.
  •
  • ►The frequency adjustable ,100units gates work side by side without any interference each other
  •
  • ►Harmless to pregnant woman and heart pacemaker
  •
  • ►Tamper-proof, operate program is protected by password
  •
  • ►One power port on head and two power ports in feet end.
  •
  • ►MBSU battery backup, in time power transfer(optional)



Applications :

Airports and Seaports, Electronic Factory, Government Buildings, Embassy, Police office, Court, Prisons and jails,

Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos,Power plants,

Research Sites,Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs,

secret Meetings and VIP Security, Gymnasium .





Manufactuer support:

  1. Product design, technology development, parts processing and sales integration services
  2. One of the world's top four brands, leading technology, quality first, service first-class
  3. Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
  4. Agency cooperation,ODM,OEM
  5. Sales of a complete set of technical solutions
  6. Technical guidance and training for customers
  7. 24months quality warranty ,24hours online technology support.

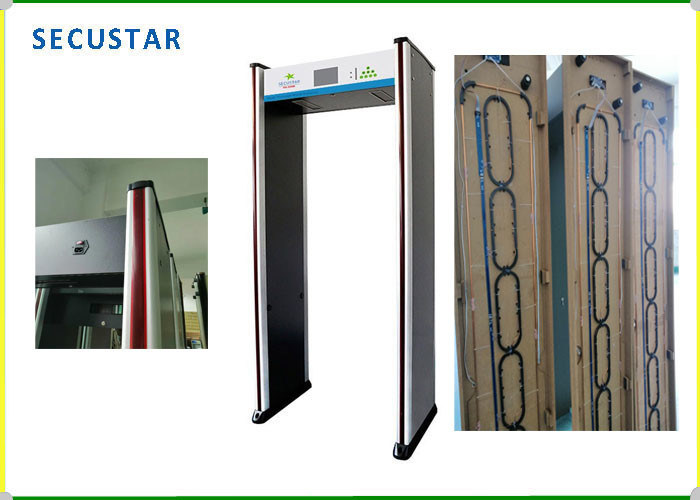

Self - Diagnostic Door Frame Metal Detector , Walk Thru Metal Detectors For Security 0

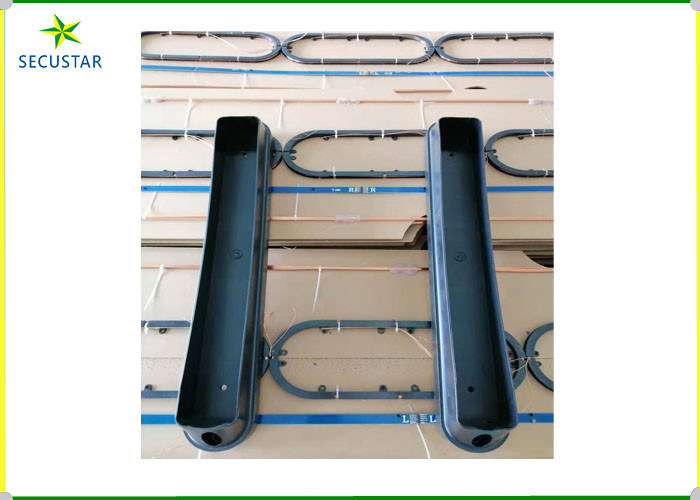

Self - Diagnostic Door Frame Metal Detector , Walk Thru Metal Detectors For Security 1
