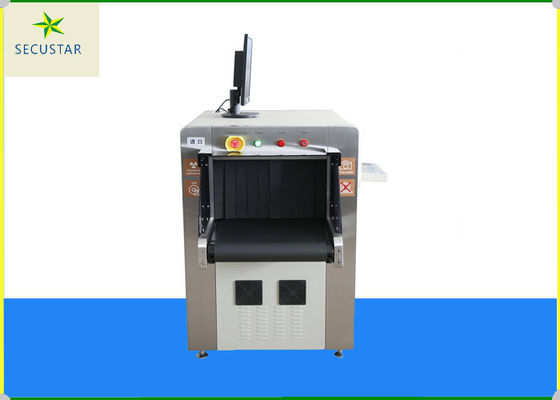

TIP Function Parcel X Ray Machine 0.6KW For Small Size Dangerous Object Detection

TIP Function Parcel X Ray Machine 0.6KW For Small Size Dangerous Object Detection supplier
TIP Function Parcel X Ray Machine 0.6KW For Small Size Dangerous Object Detection supplier TIP Function Parcel X Ray Machine 0.6KW For Small Size Dangerous Object Detection supplier
Basic Information
Place of Origin: China
Brand Name: SECUSTAR
Certification: CE ISO FCC FDA
Model Number: JC5030
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 5-8days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 300units per month
Contact Now
  • Detail Information
  • Product Description
Conveyor Speed: 0.22m/s Film Safety: Guarantee ISO1600 Film
Application: Malls,Station,Airport Metro Station,Court,Airport/School/hospital/shopping Mall Material: 304 Stainless Steel Frame
Resolution: 40AWG Penetration: 35mm Steel
Alarm: Danger Objects Circle Alarm And Sound Image Display: 24-bit True Color Display
Motor Roller: Moving Speed Adjustable Detector: DT Dual Energy Detectors
Mass Storage: More Than 120000 Jpg Images The Beam Direction: Upwards
Noise Level: Less Than 56 Db X Ray Leakage: Less Than 0.5 μGy/h
Safe Design: Protection Covers For In And Out Monitor: Philips 19inch
System: Windows7 Or XP Hard Disk: 1TB Memory
Console: Multi-function Keyboard With Touch Mouse X Ray System: Self-diagonal , TIP , OTP Operator Management
Working Voltage: 220 VAC (± 10%) 50 ± 3 Hz Power Consumption: 0.6KW Max
Scan Speed: 1200 Bags/hour Warranty: 24 Months
High Light:

x ray bag scanner

,

package x ray scanner

SECUSTAR – JC5030A x ray Parcle Scanner / HAND CARRIED ITEMS /SMALL BAGGAGE

The baggage scanner is special ly designed for tourist attractions entrance, shopping malls, supermarkets, sports center, big hotels, railway stations, logistic warehouse, airports, prisons, public security organs and other public places design. Strict internal quality control, engineering and production of double-check the implementation of the principle of the whole part of safeguards by the European Union CE certification and FDA  FCC certification, the whole manufacture production is strictly according to ISO 9001 quality management system requirements and ISO14001 environmental management system certification by OHSMS18001 occupational health and safety management system certification through the National Ministry of Public Security Testing Centre by China police occupational health Testing Centre received national radiation safety license certification State Intellectual Property Office a number of utility model patents, the State copyright Bureau of computer software copyright registration certificate products unique advantages .



Physical Details
Tunnel size 500(W) x 300(H) mm.
Product dimensions 2170mm(L)x720mm(W)x1193mm(H).
Wooden packagedimensions 1750mm(L)x850mm(W)x1400mm(H).
Shipping weight Gross weight: 310 kg.
Working temperature (-20)℃~(+60)℃/Humidity 5% to 95%, non-condensing.
Storage temperature (-30)℃~(+70)℃/Humidity 5% to 95%, non-condensing.
Power supply 110~240VAC (-10%~ +20%),50/60±3Hz.
Power consumption < 0.5 kw/h.
Certificates Meets electrical safety and compatibility requirements for CE(EMCDirective~2014/30/EU and LVD Directive~2014/35/EU),ROHS(Directive~2011/65/EU).
X-ray Generator
X-ray tube head Self-contained.
Tube voltage rating 80 kV(default), can be tailor-made based on requirement.
Tube current 0.2~0.6 mA.
Cooling/working period 100% with sealed oil bath cooling.
Beam direction Diagonal from bottom (60°beam divergence).
X-ray leakage dose Less than 0.35 μGy / h (5cm distance from any position of the machine).
Single scanning X-ray leakage dose Less than 1 μGy / h.
High X-ray leakage protection Two levels lead curtains to reduce the leakage, and protect operators & passengers.
Inspection Performance
Steel penetration 10 mm typical.
Conveyor speed 0.22m/s.
Conveyor height 740mm(including the support tray).
Wire resolution 38 AWG wire,40 AWG(0.0787 mm) typical.
Space resolution Horizontal Φ 1.0mm;vertical Φ 1.0 mm.
Noise <55dB.
Film safety Guaranteed for high-speed film up to ISO 1600 (33 DIN).
The array detector L-type photo-diode single energy detector.
Video 19 inch color LCD monitor, pixel 1280 x 1024 video card.
Image Performance System
Auto soft operating system Win 7 English version.
Standard functions High & Low penetration/Super penetration/Organic & in-organic image/local & edge enhancement/zoom in & zoom out/Image resolution/Image storage/Image management/Black & white image/Gray image/Belt forward & reversal/Marks
Image storage 100,000 images can be stored and process continuously.
Pull back/forward 30 images to process.
64x smart zoom Adjustable zoom preview window.
Other Functions
Alarm function Liquid and high density substances will give audio & indicator alarm with a red frame.
Networking function Can be connected to a dedicated virtual LAN configured tested by the assignedcommunications subcontractor.
Images output Images can be put out with USB interfaces.





Physical Specifications
Unit weight (kgs) 400kg
Unit size (mm) 1666(L)*774(W)*1196(H)
Package Wooden packing
Gross weight (kgs) 460kg
Packing size(machine body) #1: 180*90*142cm
(console desk) #2: 70*70*143cm ;70kg (Optional)



General Specifications
Tunnel size(mm) 534(L)*355(W)
Conveyor Speed(m/s) 0.22m/s
Conveyor height(mm) 745mm
Conveyor Max Load(kgs) 165kg
X ray dose per each inspection 0.7 μGy
X ray leakage <0.05 μGy / hour(at the distance 5cm with external housing )
Penetration 12 mm steel
Wire Resolution 40AWG (guarantee), 42AWG(typical)
Penetration Resolution dia 0.254mm copper wire (AWG30) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm .
Spatial resolution: Horizontal:dia1.0mm,Vertical: dia1.0mm
Power Consumption Max. 0.5KW
Noise < 58 dB
Film Safety Guarantee ASA/ISO1600 Film



X-ray Generator
Anode Voltage 80-100KV(adjustable)
Tube Current 0.4 ~ 1.2 mA (adjustable)
Generate angle 80 degree upward
Generate direct From bottom to top
Cooling / Duty Cycle Sealed Oil Cooling /100%
Brand US Spellman brand



Dimension Size (mm)

TIP Function Parcel X Ray Machine 0.6KW For Small Size Dangerous Object Detection 0



TIP Function Parcel X Ray Machine 0.6KW For Small Size Dangerous Object Detection 1

TIP Function Parcel X Ray Machine 0.6KW For Small Size Dangerous Object Detection 2
