|Place of Origin:||CHINA|
|Certification:||CE FCC SGS ISO|
|Minimum Order Quantity:||1unit|
|Packaging Details:||Carton packing 230*45*38 cm ; 80*28*26 cm|
|Delivery Time:||5-8 days|
|Payment Terms:||T/T, Western Union, L/C, D/P, D/A|
|Detect Zones:||33 Alarm Zones||Warterproof:||IP67|
|Safe Level:||Without Radiation ,passwords Protection||Coil Circle:||11 Coil Circles Each Side|
|Material:||Aluminum Control Box||Detection Speed:||100 Persons /min|
|Control Unit:||Smart Model Designed||Infrared Sensor:||4 Pcs Waterproof Sensors|
|Signal Cable:||Left And Right Side||Detection Object:||Ferrous And Non-ferrous Metals|
|Auto Count:||Passage And Alarm Number||Power Plug:||Different Area Standard Optional|
|Tunnel Size:||Inner Width 760mm||Alarm Way:||Sound And Led Light|
|Alarm Display:||Led Lighting Bars||Foot Cover:||High Density ABS|
|Sensitivity:||1-300 Level Adjustable||Software Function:||Self-diagonal And Calibraton Function|
|Operation:||Friendly Using With Remote Control||Network:||Support 5G Or Wifi Internet Work|
metal detector security doors,
gate metal detector
33 Zones Walk Through Archway Metal Detector Designed Can Be Used In Gambling House
Security Checking Walk Through Metal Detector JC1833
Are you seeking for high performance and reasonable factory price walk through scanners? Just this Model JC1833 .
JC1833 walk through metal detector with 33 detection zones waterproof IP67 , It is able to work in outdoor and indoor lasting working 72hours , the walk through gate inner width is 760mm designed according to international produce standard ,There is a 7 inch big LCD display on control box , the gate with power saving feature , when security checking area without anyboy passing the gate for 5min , the gate will enter into sleeping situation without power comsumption . once passage walk through it ,the detector will auto detection immediately .
SECUSTAR JC1833 can be built in rechargeable battery for 4-8hours power backup also night vision camera , especially the gate connect to internet to reach remote control and monitoring via secustar APP software , users are able to research history records in mobile or computer easily.
If you want to learn more about walk through scanner JC1833, please just feel free to contact us .we will give you details catalog or videos to check .
|Working temperature||-20°c to 70°c|
|Power consumption||Max 15w|
|Outer frame size||2200mm x 880mm x 600mm|
|Inner frame size||2000mm x 760mm x 600mm|
Product Main Characteristic:
►The frequency adjustable,100 units gates work side by side without interference.
►AutoScan environment interference at site, auto adapt to working place
►The gate with Power-saving mode, system sleeping and wake up automatically
►4000~8000adjustable operating frequency and multiple channels.
►High density fire proof door panels and control head made in aluminum.
►MBSU battery backup, in time power transfer(optional)
►33 zones to precisely identify multiple target locations
►user can set 6 ,11 or 33 zones freely to work at software.
►It is able to detect ferrous and non-ferrous articles
►Sound and light alarm, the gate waterproof IP65

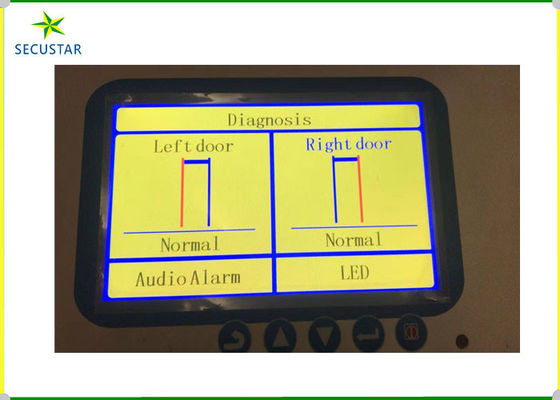

►Friendly 7 inch LCD operate interface with function keys.
►Automatically count passengers and alarm times
►Random alarm features adjustable from 0 to 50%.
►Self-diagnostic procedures and calibration automatically
►Modular structure, 30 detection programs for different spot
►Harmless to pregnant woman and heart pacemaker
►Tamper-proof, operate program is protected by password
►Led alarm bars built in front of door panels that is for accurate alarm display
►DSP digital technology, 16 kinds Sound alarm, 20 level volume adjustable
Airports and Seaports, Electronic Factory, Government Buildings, Embassy, Police office, Court, Prisons and jails,
Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos,Power plants,
Research Sites,Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs,
secret Meetings and VIP Security, Gymnasium .
Passageway Interior Size
|Width 30" (0.76 m)|
|Height 80" (2.03 m)|
|Depth 23" (0.58 m)|
Overall Exterior Size
|Width 35" (0.90 m)|
|Height 87" (2.21 m)|
|Depth 23" (0.58 m)|
|Width 35.5" (0.90 m)|
|Height 91.5" (2.32 m)|
|Depth 6.25" (.16 m)|
|Weight: 143 lbs. (64 kg)|
|Shipping Weight: 165 lbs. (74 kg)|
