Waterproof Cylindrical Door Frame Metal Detector Designed Can Be Used In Nation Banks

Waterproof Cylindrical Door Frame Metal Detector Designed Can Be Used In Nation Banks supplier
Waterproof Cylindrical Door Frame Metal Detector Designed Can Be Used In Nation Banks supplier Waterproof Cylindrical Door Frame Metal Detector Designed Can Be Used In Nation Banks supplier Waterproof Cylindrical Door Frame Metal Detector Designed Can Be Used In Nation Banks supplier
Basic Information
Place of Origin: CHINA
Brand Name: SECUSTAR
Certification: CE FCC SGS ISO
Model Number: JC1833PLUS
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Carton packing 230*45*38 cm ; 80*28*26 cm
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 1000units/month
Contact Now
  • Detail Information
  • Product Description
Tunnel Size: Inner Width 760mm Infrared Sensor: 4 Pcs Waterproof Sensors
Warterproof: IP67, Work In Raining Detect Zones: 33 Zones
Material: Aluminum Control Box Coil Circle: 11 Coil Circles Each Side
Detection Speed: 100 Persons /min Signal Cable: Left And Right Side
Detection Object: Ferrous And Non-ferrous Metals Safe Level: Without Radiation ,passwords Protection
Operation: Friendly Using With Remote Control Auto Count: Passage And Alarm Number
Alarm Way: Sound And Led Light Alarm Display: Led Lighting Bars
Foot Cover: High Density ABS Control Unit: Smart Model Designed
Sensitivity: 1-300 Level Adjustable Software Function: Self-diagonal And Calibraton Function
Power Plug: Different Area Standard Optional Network: Support 5G Or Wifi Internet Work
High Light:

metal detector security doors

,

multi zone door frame metal detector

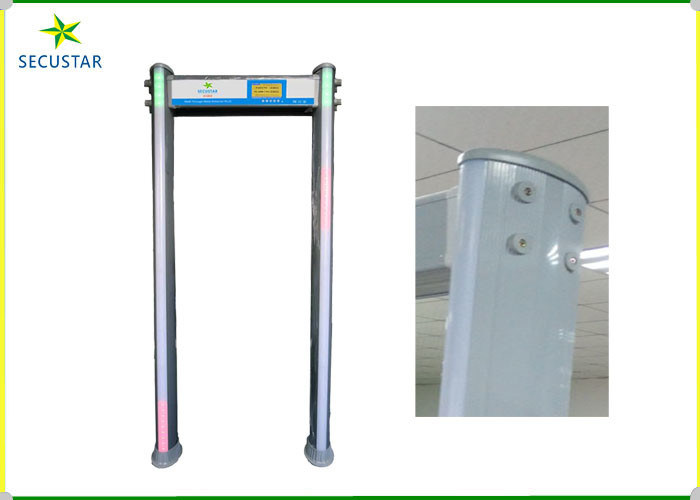

Waterproof Cylindrical Door Frame Metal Detector Designed Can Be Used In Nation Banks                                                   Security Checking Door Frame Metal Detector JC1833Plus



SECUSTAR JC1833plus cylindrical Door frame metal detector with 33 detection zones waterproof IP67 , It is able to work in outdoor and indoor lasting working 72hours , the walk through gate inner width is 760mm designed according international produce standard ,There  is a 7 inch big LCD display on control box , the gate with power saving feature , when security checking area without anyboy passing the gate for 5min , the gate will enter into sleeping situation without power comsumption . once passage walk through it ,the detector will automatically detect immediately .



SECUSTAR JC1833plus can be built in rechargeable battery for 4-8hours power backup also night vision camera , especially the gate connect to internet to reach remote control and monitoring via secustar APP software , users are able to research history records in mobile or computer easily.



If you want to learn more about walk through scanner JC1833, please just feel free to contact us .we will give you details catalog or videos to check .



Technical Specification

Electric current AC110-240V,50/60Hz
Working temperature -20°c to 70°c
Power consumption Max 15w
Outer frame size 2200mm x 880mm x 600mm
Inner frame size 2000mm x 760mm x 600mm
Gross weight 65KG




Product Main Characteristic:



►33 zones to precisely identify multiple target locations

►user can set 6 ,11 or 33 zones freely to work at software.

►It is able to detect ferrous and non-ferrous articles

►Sound and light alarm, the gate waterproof IP65

►Friendly 7 inch LCD operate interface with function keys.

►Automatically count passengers and alarm times

►Random alarm features adjustable from 0 to 50%.

►Self-diagnostic procedures and calibration automatically

►Modular structure, 30 detection programs for different spot

►Harmless to pregnant woman and heart pacemaker

►Tamper-proof, operate program is protected by password

►Led alarm bars built in front of door panels that is for accurate alarm display

►DSP digital technology, 16 kinds Sound alarm, 20 level volume adjustable

►The frequency adjustable,100 units gates work side by side without interference.

►AutoScan environment interference at site, auto adapt to working place

►The gate with Power-saving mode, system sleeping and wake up automatically

►4000~8000adjustable operating frequency and multiple channels.

►High density fire proof door panels and control head made in aluminum.

►MBSU battery backup, in time power transfer(optional)



Manufactuer support:

  1. Product design, technology development, parts processing and sales integration services
  2. One of the world's top four brands, leading technology, quality first, service first-class
  3. Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
  4. Agency cooperation,ODM,OEM
  5. Sales of a complete set of technical solutions
  6. Technical guidance and training for customers
  7. 24months quality warranty ,24hours online technology support.

Applications :

Airports and Seaports, Electronic Factory, Government Buildings, Embassy, Police office, Court, Prisons and jails,

Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos,Power plants,

Research Sites,Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs,

secret Meetings and VIP Security, Gymnasium .



Waterproof Cylindrical Door Frame Metal Detector Designed Can Be Used In Nation Banks 0



Waterproof Cylindrical Door Frame Metal Detector Designed Can Be Used In Nation Banks 1
