SECUSTAR Security Solution Supply
| Place of Origin: | China |
|---|---|
| Brand Name: | SECUSTAR |
| Certification: | CE ISO FCC FDA |
| Model Number: | JC5030 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | wooden packing |
| Delivery Time: | 5-8days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 300units per month |
| Film Safety: | Guarantee ISO1600 Film | Conveyor Max Load: | 170 Kg |
|---|---|---|---|
| Application: | Malls,Station,Airport Metro Station,Court,Airport/School/hospital/shopping Mall | Material: | 304 Stainless Steel Frame |
| Tunnel Size: | 505 Mm (W) X 304 Mm (H) | Color Image: | 4-7kinds Color |
| Conveyor Speed: | 0.22m/s | Monitor: | Philips 19inch |
| Working Voltage: | 220 VAC (± 10%) 50 ± 3 Hz | Resolution: | 40AWG |
| Console: | Multi-function Keyboard With Touch Mouse | Safe Design: | Protection Covers For In And Out |
| Penetration: | 35mm Steel | Alarm: | Danger Objects Circle Alarm And Sound |
| Image Display: | 24-bit True Color Display | Conveyor Height: | 745cm |
| Motor Roller: | Moving Speed Adjustable | Detector: | DT Dual Energy Detectors |
| Mass Storage: | More Than 120000 Jpg Images | The Beam Direction: | Upwards |
| Noise Level: | Less Than 56 Db | X Ray Leakage: | Less Than 0.5 μGy/h |
| X Ray System: | Self-diagonal , TIP , OTP Operator Management | Power Consumption: | 0.6KW Max |
| Warranty: | 24 Months | System: | Windows7 Or XP |
| Hard Disk: | 1TB Memory | Scan Speed: | 1200 Bags/hour |
| Machine Workload: | Continuous Working 72hours | X Ray Generator: | US Technology |
| High Light: | x ray inspection machine,x ray screening systems |
||
Roller Belt Trays Color Monitor X Ray Screening Machines Conveyor Load 170 kg Bags In Public Place

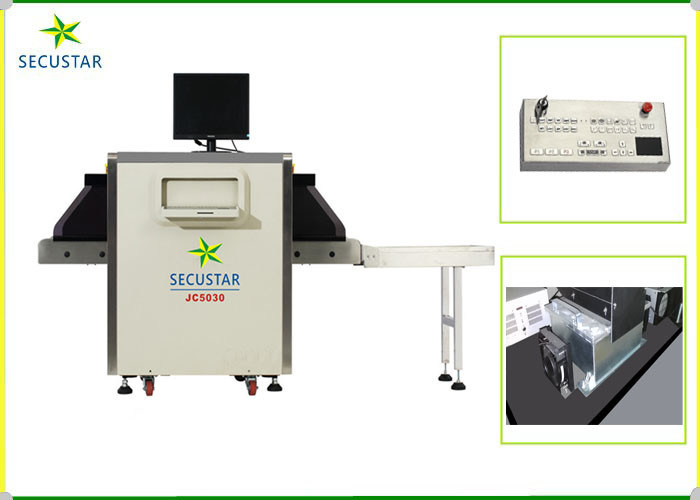

SECUSTAR – JC5030 Parcle Scanner / HAND CARRIED ITEMS /SMALL BAGGAGE
The baggage scanner is special ly designed for tourist attractions entrance, shopping malls, supermarkets, sports center, big hotels, railway stations, logistic warehouse, airports, prisons, public security organs and other public places design. Strict internal quality control, engineering and production of double-check the implementation of the principle of the whole part of safeguards by the European Union CE certification and FDA FCC certification, the whole manufacture production is strictly according to ISO 9001 quality management system requirements and ISO14001 environmental management system certification by OHSMS18001 occupational health and safety management system certification through the National Ministry of Public Security Testing Centre by China police occupational health Testing Centre received national radiation safety license certification State Intellectual Property Office a number of utility model patents, the State copyright Bureau of computer software copyright registration certificate products unique advantages .
Main Characteristics and High light:
★ Intelligent Conveyor: When putting the bags on the conveyor, it will start to work automatically.
★ Double lead curtains and black protection covers for preventing guest hands to get any radiation leakage .
★ HD Display: with high-definition 19” LCD display, an image displays more delicate, resolution of 1920 x 1080;
★ Mass Storage: 4GB +1TB harddisk, direct to disk storage quantities greater than 150 000 (jpg, png )images,
★ International Brands Accessories: USA SPELLMAN X-ray sources, Finland DT detectors, Germany INTERROLL roller,
★ Professional multi-functions operation keyboard with touch mouse .
★ Parallel data transmission technology, compared with other similar products faster transmission network 10-20 times;
★ Fully Functional: not only has the networking equipment, image storage and printing output function and TIP OTP .
★ Easy to Use: the simple user-friendly interface, allowing users to easily use the device;
★ The machine with USB output port for exporting historical scanning images and records easily
★ Energy Saving Mode: the machine can automatically censor objects, bags before putting the machine up and running.
★ On/Off Key: simply rotate the shutdown key, the device automatically shut down and boot .
| Physical Specifications | |
| Unit weight (kgs) | 400kg |
| Unit size (mm) | 1666(L)*774(W)*1196(H) |
| Package | Wooden packing |
| Gross weight (kgs) | 460kg |
| Packing size(machine body) | #1: 180*90*142cm |
| (console desk) | #2: 70*70*143cm ;70kg (Optional) |
| General Specifications | |
| Tunnel size(mm) | 534(L)*355(W) |
| Conveyor Speed(m/s) | 0.22m/s |
| Conveyor height(mm) | 745mm |
| Conveyor Max Load(kgs) | 165kg |
| X ray dose per each inspection | 0.7 μGy |
| X ray leakage | <0.05 μGy / hour(at the distance 5cm with external housing ) |
| Penetration | 35mm steel |
| Wire Resolution | 40AWG (guarantee), 42AWG(typical) |
| Penetration Resolution | dia 0.254mm copper wire (AWG30) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm . |
| Spatial resolution: | Horizontal:dia1.0mm,Vertical: dia1.0mm |
| Power Consumption | Max. 0.5KW |
| Noise | < 58 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-ray Generator | |
| Anode Voltage | 140 -160KV(adjustable) |
| Tube Current | 0.4 ~ 1.2 mA (adjustable) |
| Generate angle | 80 degree upward |
| Generate direction | From bottom to top |
| Cooling / Duty Cycle | Sealed Oil Cooling /100% |
| Brand | US Spellman brand |
| Image System | |
| X-ray Sensor | L-Shaped Photodiode Array (Dual-energetic) , 12bit Deep |
| Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 4096 |
| Image Enhancement | 1-64X zoom enlargement continuity, Color or B/W, negative, high/low Penetration, Magnification, organic /inorganic Stripping, Edge enhancement, Darken/Lighten |
| Image Recall&Scroll | All preceding images recallable,move image forward and backward on screen |
| Explosives & Narcotics Detection | Explosives & narcotics alarm and highlight according to atomic No signature |
| High Density Region Alarm | Impenetrable region alarm and highlight, for possible concealing of threats and contrabands |
| Threat Image Projection | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Archive | Up to 150,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP,PNG and other general formats |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, system setting, system log/exit, system standby and stimulant training,generator preheating auto,record print |
| Network Applications | Multiple remote applications available based on internet and windows platform, such as image centralized storage and identify, recheck at workstation, and Teamview |
| Images process | 32bit real time processing ,4colors analysis, Images displayed marked date and ID No, Count the number of bags |
| Auto Scanning function | Sensor built in entry of tunnel ,when we put object on conveyor, the machine will start to scan the objects automatically,need not to manual operate it. |
| Bi-Direction Scanning | Two directional scanning forward and backward ,Images will display both ways on the screen,user can set moving direction in the system . |
| Operating Environment | |
| Operation temperature/Humidity | 0℃-45℃ / 5%-95%(non-condensing) |
| Storage Temperature/Humidity | -40℃to 70℃ / 5%-95%(non-condensing) |
| Operation Power | 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC) |
| UPS and Extenison trays | 15mins, 30mins, 60mins Optional. Stainless steel roller trays optional |
| Computer and other | |
| Monitor | High Resolution Color, 1280*1024 LCD Accord, Double 19inch monitors |
| Hard Disk | SEAGATE 1TB 3.5” |
| CPU | CPU-Intel I3-3220 |
| Storage | 4GB |
| Main board | IPC-629A/ATX-581 |
| Control panel | made in 304 stainless steel ,with touch mouse function . |
| Control desk | Extension cable duplex table with wheels |
| Operation System | Windows 7 or XP system . |
| Compliance certificate | |
| International & China | * ISO19001 ; ISO14001 ; OHSMS18001 ; * CE SGS * USA FDA * Radiation Safety Certificate from Ministry of Public Security |
Dimension Size (mm)
