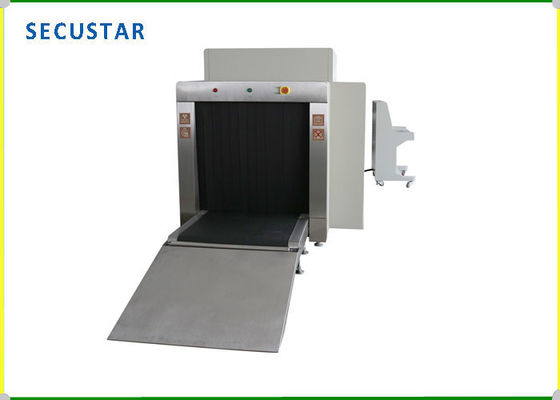

Big Tunnel X Ray Screening Machine Low Noise For Bus Station / Train Station

Big Tunnel X Ray Screening Machine Low Noise For Bus Station / Train Station supplier
Big Tunnel X Ray Screening Machine Low Noise For Bus Station / Train Station supplier Big Tunnel X Ray Screening Machine Low Noise For Bus Station / Train Station supplier Big Tunnel X Ray Screening Machine Low Noise For Bus Station / Train Station supplier Big Tunnel X Ray Screening Machine Low Noise For Bus Station / Train Station supplier
Basic Information
Place of Origin: CHINA
Brand Name: SECUSTAR
Certification: CE ISO FCC FDA SGS
Model Number: JC100100DV
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wooden packing 2800 (L)× 1450(W)× 1940(H)mm
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union, L/C, D/P, D/A
Supply Ability: 150 units/month
Contact Now
  • Detail Information
  • Product Description
Tunnel Size: 1010((W) * 1010(H) Mm Penetration: 35 Mm Steel
Film Safety: Guarantee ISO1600 Film Wire Resolution: 40AWG
Conveyor Height: 330 Mm High Conveyor Load: Max 200kg
Conveyor Speed: 0.22/0.23 M/s X Ray Generator: US Technology 160kv
X Ray Leakage: Less Than 0.5 μGy/h The Beam Direction: Downwards
Image Color: 4-7 Kinds Real Color Detect System: Finland DT Dual Energy Detectors
Operate System: Windows 7 Or XP System Scan Speed: 2400 Baggage /hour
Motor Roller: Moving Speed Adjustable Console Panel: Stainless Steel Multi-function Keyboard
Alarm Way: Danger Objects Circle Alarm Image Display: 32-bit True Color Display
X Ray Software: Self-diagonal , TIP , OTP Operator Management Mass Storage: More Than 120000 JPG Images
Machine Workload: Continuous Working 72hours Material: 304/316 Stainless Steel
Hard Disk: 4G+1 TB Memory Safe Design: Protection Covers For In And Out
Monitor Size: 19 Inch Philips Monitors Application: Bus Station , Train Station ,warehouse
Working Voltage: 220 VAC (± 10%) 50 ± 3 Hz (others) Power Consumption: 1.0 KW Max
Noise Level: Less Than 58db Quality Warranty: Extension 24 Months
High Light:

x ray inspection machine

,

x ray screening systems

JC100100DV X ray Baggage and Luggage Scanner



The machine is specially designed for customers requiring the inspection of baggage and small cargo without opening them.

The low conveyor belt allows to load and unload easily parcels and small cargo. Stainless steel marterial roller table trays optional.



JC100100 X-ray luggage security system is a very convenient and effective solution for places where need of control of heavy luggage

This X-ray machine has an easy loading design with its lower deck pallet of just 33 cm.



X-ray cargo and luggage scanner JC100100  will be optimal solution for customs facilities, airports, logistics companies and parcel services

or wherever security screening of heavy packages is required. It guarantees small footprint, high throughput and effectiveness of screening process.



Automatic color coding of materials with different atomic numbers facilitates substantially the process of image analysis and the detection

of potential threats: narcotics, arms and weapons, explosives and smuggled goods.





X ray Machine JC100100DV Main Features:

  • ★ International Brands Accessories: US x-ray sources, Finland DT detectors, Germany INTERROLL roller, better performance;
  •    The machine with Two x ray generators , double L shape detectors , dual views ,two color screen monitors to display.
  • ★ Leading Technology: parallel data transmission technology, more faster transmission network 10-20 times;
  • ★ Fully Functional: not only has the networking equipment, image storage and printing output function and can be customized ;
  • ★ Easy to Use: the simple user-friendly interface, allowing users to easily use the device; Intelligent roller system.
  • ★ HD Display: with two high-definition 19” LCD display, an image displays more delicate, resolution of 1920 x 1080;
  • ★ Mass Storage: direct to disk storage quantities greater than 150 000 images, and direct call to check; baggage counter auto.
  • ★ Energy Saving and Environmental Protection: the machine Auto Scan when cargo put on belt .
  • ★ Off Key: simply rotate the shutdown key, and the device automatically shut down safely reduce equipment failures.
  • ★ Environmental Design: Lead screens protective film to prevent exposure to lead guests hand to avoid lead contamination.
  • ★.High Specs industry Computer : ITB memory Seagate hard disk, i5 intel CPU and windows 7 system or XP system



JC10010DV Luggage Scanner Base Specifications :

Tunnel  size 1014 (Width) × 1000 (H) mm x-ray leakage <0.1 μ Sv/h(at 5cm from housing)
Conveyor speed   0.22 ± 0.22 m / s Single dose rate < 1.2 µGy
Conveyor Height  330 mm  The beam direction Downwards drection and Horizontal
Penetration   35mm steel  Tube Voltage  150-160 kv adjustable
Wire resolution  40 AWG  Tube current 0.5~ 1.2 mA (adjustable)
Conveyor load  Max 200kg  Beam angle     80 °
Safety Film   ISO 1600 Film safety Cooling sealed oil cooling100%





Image System
X-ray Sensor L-Shaped Photodiode Array (Dual-energetic) , 24bit Deep , detectors No 1280
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement 1-64times enlargement continuity, Color or B/W, negative, high/low
penetration, organic /inorganic Stripping, Edge enhancement, etc.
Image Recall&Scroll All preceding images recallable,move image forward and backward on screen
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic No signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of threats and contrabands,Automatic organic material threat alert.
Threat Image Projection Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive Up to 150,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP,PNG and other general formats
Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, system setting, system log /exit, system standby and stimulant training,generator preheating auto,record print
Network Applications Multiple remote applications available based on internet and windows platform, such as image centralized storage and identify, recheck at workstation, and Teamview
Images process 32bit real time processing ,4colors analysis, Images displayed marked date and ID No, Count the number of bags
Auto Scanning function Sensor built in entry of tunnel ,when we put object on conveyor, the machine will start to scan the objects automatically,need not to manual operate it.
Bi-Direction Scanning Two directional scanning forward and backward ,Images will display both ways on the screen,user can set moving direction in the system .

Operation Environment
Operation temperature/Humidity 0℃-45℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity -40℃to 70℃ / 5%-95%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS 15mins, 30mins, 60mins etc, optional



Dimension Size (mm)

Big Tunnel X Ray Screening Machine Low Noise For Bus Station / Train Station 0



Dual Views Image Display on Two monitors :

Big Tunnel X Ray Screening Machine Low Noise For Bus Station / Train Station 1
