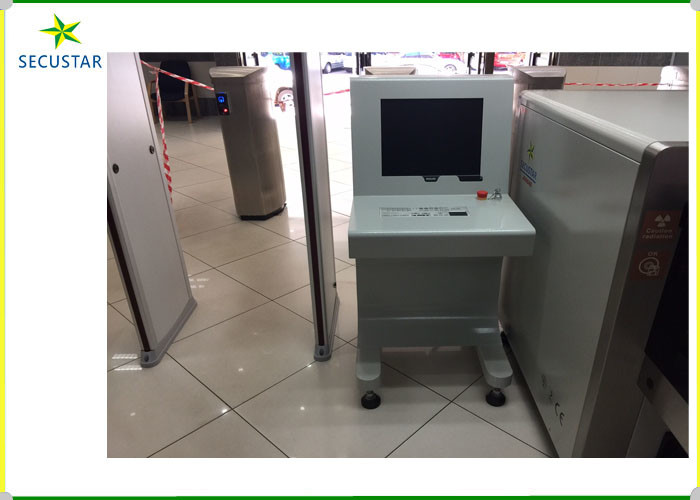

Explosive Detection Alarm X Ray Screening Machine For Airport Security Check

Explosive Detection Alarm X Ray Screening Machine For Airport Security Check supplier
Explosive Detection Alarm X Ray Screening Machine For Airport Security Check supplier Explosive Detection Alarm X Ray Screening Machine For Airport Security Check supplier Explosive Detection Alarm X Ray Screening Machine For Airport Security Check supplier Explosive Detection Alarm X Ray Screening Machine For Airport Security Check supplier
Basic Information
Place of Origin: China
Brand Name: SECUSTAR
Certification: CE ISO FCC SGS
Model Number: JC6040
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Wooden packing , 230(L)×97(W)×135(H)cm
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 250units/month
Contact Now
  • Detail Information
  • Product Description
Tunnel Size: 605(W)*405(H)mm Film Safety: Guarantee ISO1600 Film
Resolution:: 40AWG Penetration: 35-38mm Steel
Conveyor Height:: 632mm Conveyor Load: Max 175kg
Conveyor Speed: 0.22/0.23 M/s X Ray Generator: US Technology 150kv
X Ray Leakage: Less Than 0.5 μGy/h Detect System: Finland DT Dual Energy Detectors
Scan Speed: 1200 Bags /hour Operate System: Windows 7 Or XP System
Console Panel: Stainless Steel Multi-function Keyboard Alarm Way: Danger Objects Circle Alarm
Image Display: 24-bit True Color Display Mass Storage: More Than 120000 JPG Images
X Ray System: Self-diagonal , TIP , OTP Operator Management Machine Workload: Continuous Working 72hours
Material: 304 Stainless Steel Frame Application: Hotel, Mall , Bank , Prison , Embassy
Hard Disk: I TB Memory Safe Design: Protection Covers For In And Out
Monitor Size: Philips 19 Inch Noise Level: Less Than 56db
Working Voltage: 220 VAC (± 10%) 50 ± 3 Hz Power Consumption: 0.8 KW Max
Motor Roller: Moving Speed Adjustable Quality Warranty: 24 Months
High Light:

x ray screening systems

,

airport security screening equipment

SECUSTAR – JC6040 X-ray Baggage Scanner / HAND CARRIED ITEMS

The baggage scanner is specially designed for tourist attractions entrance, shopping malls, supermarkets, sports center, big hotels, railway stations, logistic warehouse, airports, prisons, public security organs and other public places design. Strict internal quality control, engineering and production of double-check the implementation of the principle of the whole part of safeguards by the European Union CE certification and FDA FCC certification, the whole manufacture production is strictly according to ISO 9001 quality management system requirements and ISO14001 environmental management system certification by OHSMS18001 occupational health and safety management system certification through the National Ministry of Public Security Testing Centre by China police occupational health Testing Centre received national radiation safety license certification State Intellectual Property Office a number of utility model patents, the State copyright Bureau of computer software copyright registration certificate products unique advantages .





Main Characteristics and High light:
★ International Brands Accessories: USA SPELLMAN X-ray sources, Finland DT detectors, Germany INTERROLL roller,

★ Professional multi-functions operation keyboard with touch mouse .
★ Parallel data transmission technology, compared with other similar products faster transmission network 10-20 times;
★ Fully Functional: not only has the networking equipment, image storage and printing output function and TIP OTP .
★ Easy to Use: the simple user-friendly interface, allowing users to easily use the device;
★ HD Display: with high-definition 19” LCD display, an image displays more delicate, resolution of 1920 x 1080;
★ Mass Storage: 4GB +1TB harddisk, direct to disk storage quantities greater than 150 000 (jpg, png )images,
★ The machine with USB output port for exporting historical scanning images and records easily
★ Energy Saving Mode: the machine can automatically censor objects, bags before putting the machine up and running.
★ On/Off Key: simply rotate the shutdown key, the device automatically shut down and boot .
★ Intelligent Conveyor: When putting the bags on the conveyor, it will start to work automatically.
★ Double lead curtains and black protection covers for preventing guest hands to get any radiation leakage .





Physical Specifications
Unit weight (kgs) 460kg
Unit size (mm) 2080(L)*864(W)*1093(H)
Package Wooden packing
Gross weight (kgs) 560kg
Packing size(machine body) #1:230*97*135cm
(console desk) #2: 70 *70*143cm ;70kg (Optional)



General Specifications
Tunnel size(mm) 605(L)*405(W)
Conveyor Speed (m/s) 0.22m/s
Conveyor height(mm) 632mm
Conveyor Max Load(kgs) 175kg
X ray dose per each inspection 0.7 μGy
X ray leakage <0.05 μGy / hour(at the distance 5cm with external housing )
Penetration 35-38mm steel
Wire Resolution 40AWG (guarantee), 42AWG(typical)
Penetration Resolution dia 0.254mm copper wire (AWG30) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm .
Spatial resolution: Horizontal:dia1.0mm,Vertical: dia1.0mm
Power Consumption Max. 0.5KW
Noise < 56 dB
Film Safety Guarantee ASA/ISO1600 Film



X-ray Generator
Anode Voltage 140 -160KV(adjustable)
Tube Current 0.4 ~ 1.2 mA (adjustable)
Generate angle 80 degree upward
Generate direction From bottom to top
Cooling / Duty Cycle Sealed Oil Cooling /100%
Brand US Spellman brand



Image System
X-ray Sensor L-Shaped Photodiode Array (Dual-energetic) , 12bit Deep
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement 1-64X zoom enlargement continuity, Color or B/W, negative, high/low Penetration,
Magnification, organic /inorganic Stripping, Edge enhancement, Darken/Lighten
Image Recall&Scroll All preceding images recallable,move image forward and backward on screen
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic No signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive Up to 150,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP,PNG and other general formats
Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, system setting, system log/exit, system standby and stimulant training,generator preheating auto,record print
Network Applications Multiple remote applications available based on internet and windows platform, such as image centralized storage and identify, recheck at workstation, and Teamview
Images process 32bit real time processing ,4colors analysis, Images displayed marked date and ID No, Count the number of bags
Auto Scanning function Sensor built in entry of tunnel ,when we put object on conveyor, the machine will start to scan the objects automatically,need not to manual operate it.
Bi-Direction Scanning Two directional scanning forward and backward ,Images will display both ways on the screen,user can set moving direction in the system .



Computer and other
Monitor High Resolution Color, 1280*1024 LCD Accord, Double 19inch monitors
Hard Disk SEAGATE 1TB 3.5”
CPU CPU-Intel I3-3220
Storage 4GB
Main board IPC-629A/ATX-581
Control panel made in 304 stainless steel ,with touch mouse function .
Control desk Extension cable duplex table with wheels
Operation System Windows 7 or XP system .



Operating Environment
Operation temperature/Humidity 0℃-45℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity -40℃to 70℃ / 5%-95%(non-condensing)
Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS and Extenison trays 15mins, 30mins, 60mins Optional. Stainless steel roller trays optional



Compliance certificate
International & China * ISO19001 ; ISO14001 ; OHSMS18001 ;
* CE SGS
* USA FDA
* Radiation Safety Certificate from Ministry of Public Security





Dimension Size (mm):

Explosive Detection Alarm X Ray Screening Machine For Airport Security Check 0



SECUSTAR X RAY SCREENING MACHINE JC6040 MODEL
