Product Details
Place of Origin: China
Brand Name: SECUSTAR
Certification: CE ISO FCC FDA
Model Number: JC5030A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 5-8days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 300units per month
Tunnel Size: |
505 Mm (W) X 304 Mm (H) |
Application: |
Malls,Station,Airport Metro Station,Court,Airport/School/hospital/shopping Mall |
Resolution: |
38-40AWG |
Conveyor Max Load: |
165 Kg |
Conveyor Height: |
745cm |
Penetration: |
38mm Steel |
Conveyor Speed: |
0.23m/s |
Film Safety: |
Guarantee ISO1600 Film |
Color Image: |
4-7kinds Color |
Material: |
304 Stainless Steel Frame |
Alarm: |
Danger Objects Circle Alarm And Sound |
Image Display: |
24-bit True Color Display |
Motor Roller: |
Moving Speed Adjustable |
Detector: |
DT Dual Energy Detectors |
Mass Storage: |
More Than 120000 Jpg Images |
The Beam Direction: |
Upwards |
Noise Level: |
Less Than 56 Db |
X Ray Leakage: |
Less Than 0.5 μGy/h |
Safe Design: |
Protection Covers For In And Out |
Monitor: |
22 Inch Monitor |
System: |
Windows7 Or XP |
Hard Disk: |
1TB Memory |
Console: |
Multi-function Keyboard With Touch Mouse |
X Ray System: |
Self-diagonal , TIP , OTP Operator Management |
Working Voltage: |
220 VAC (± 10%) 50 ± 3 Hz |
Power Consumption: |
0.6KW Max |
Scan Speed: |
1200 Bags/hour |
Machine Workload: |
Continuous Working 72hours |
X Ray Generator: |
US Technology |
Warranty: |
24 Months |
Tunnel Size: |
505 Mm (W) X 304 Mm (H) |
Application: |
Malls,Station,Airport Metro Station,Court,Airport/School/hospital/shopping Mall |
Resolution: |
38-40AWG |
Conveyor Max Load: |
165 Kg |
Conveyor Height: |
745cm |
Penetration: |
38mm Steel |
Conveyor Speed: |
0.23m/s |
Film Safety: |
Guarantee ISO1600 Film |
Color Image: |
4-7kinds Color |
Material: |
304 Stainless Steel Frame |
Alarm: |
Danger Objects Circle Alarm And Sound |
Image Display: |
24-bit True Color Display |
Motor Roller: |
Moving Speed Adjustable |
Detector: |
DT Dual Energy Detectors |
Mass Storage: |
More Than 120000 Jpg Images |
The Beam Direction: |
Upwards |
Noise Level: |
Less Than 56 Db |
X Ray Leakage: |
Less Than 0.5 μGy/h |
Safe Design: |
Protection Covers For In And Out |
Monitor: |
22 Inch Monitor |
System: |
Windows7 Or XP |
Hard Disk: |
1TB Memory |
Console: |
Multi-function Keyboard With Touch Mouse |
X Ray System: |
Self-diagonal , TIP , OTP Operator Management |
Working Voltage: |
220 VAC (± 10%) 50 ± 3 Hz |
Power Consumption: |
0.6KW Max |
Scan Speed: |
1200 Bags/hour |
Machine Workload: |
Continuous Working 72hours |
X Ray Generator: |
US Technology |
Warranty: |
24 Months |

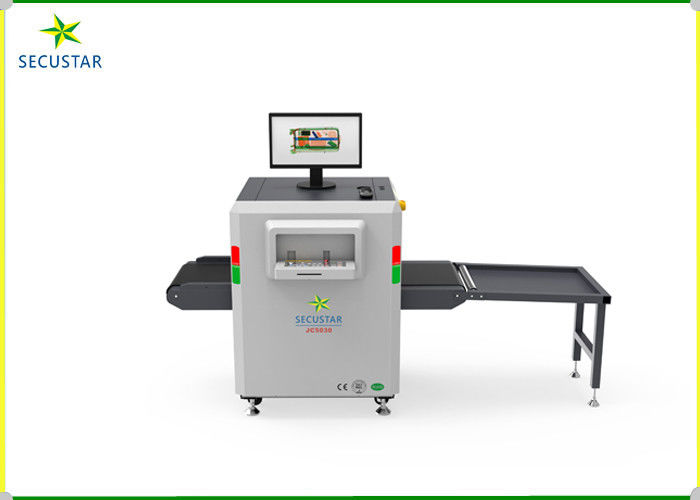

SECUSTAR – JC5030 Parcle Scanner / HAND CARRIED ITEMS /SMALL BAGGAGE
JC5030 Model Main Characteristics and High light:
JC5030 x ray parcel scanner that is totally designed and manufacturer by our own company. Every year we invest a large amount of labors and resources in the development and research for new technology and function. We own all the copyrights and patents, from the outlook design to the software. Secustar system is the industry leader and one of the very few companies in the world who can creat the new advanced security checking systems for a safer world .
| Physical Specifications | |
| Unit weight (kgs) | 400kg |
| Unit size (mm) | 1666(L)*774(W)*1196(H) |
| Package | Wooden packing |
| Gross weight (kgs) | 460kg |
| Packing size(machine body) | #1: 180*90*142cm |
| (console desk) | #2: 70*70*143cm ;70kg (Optional) |
| General Specifications | |
| Tunnel size(mm) | 534(L)*355(W) |
| Conveyor Speed(m/s) | 0.22m/s |
| Conveyor height(mm) | 745mm |
| Conveyor Max Load(kgs) | 165kg |
| X ray dose per each inspection | 0.7 μGy |
| X ray leakage | <0.05 μGy / hour(at the distance 5cm with external housing ) |
| Penetration | 35mm steel |
| Wire Resolution | 40AWG (guarantee), 42AWG(typical) |
| Penetration Resolution | dia 0.254mm copper wire (AWG30) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm . |
| Spatial resolution: | Horizontal:dia1.0mm,Vertical: dia1.0mm |
| Power Consumption | Max. 0.5KW |
| Noise | < 58 dB |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-ray Generator | |
| Anode Voltage | 140 -160KV(adjustable) |
| Tube Current | 0.4 ~ 1.2 mA (adjustable) |
| Generate angle | 80 degree upward |
| Generate direction | From bottom to top |
| Cooling / Duty Cycle | Sealed Oil Cooling /100% |
| Brand | US Spellman brand |
| Image System | |
| X-ray Sensor | L-Shaped Photodiode Array (Dual-energetic) , 12bit Deep |
| Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 4096 |
| Image Enhancement | 1-64X zoom enlargement continuity, Color or B/W, negative, high/low Penetration, Magnification, organic /inorganic Stripping, Edge enhancement, Darken/Lighten |
| Image Recall&Scroll | All preceding images recallable,move image forward and backward on screen |
| Explosives & Narcotics Detection | Explosives & narcotics alarm and highlight according to atomic No signature |
| High Density Region Alarm | Impenetrable region alarm and highlight, for possible concealing of threats and contrabands |
| Threat Image Projection | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
| Image Archive | Up to 150,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP,PNG and other general formats |
| Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, system setting, system log/exit, system standby and stimulant training,generator preheating auto,record print |
| Network Applications | Multiple remote applications available based on internet and windows platform, such as image centralized storage and identify, recheck at workstation, and Teamview |
| Images process | 32bit real time processing ,4colors analysis, Images displayed marked date and ID No, Count the number of bags |
| Auto Scanning function | Sensor built in entry of tunnel ,when we put object on conveyor, the machine will start to scan the objects automatically,need not to manual operate it. |
| Bi-Direction Scanning | Two directional scanning forward and backward ,Images will display both ways on the screen,user can set moving direction in the system . |
| Operating Environment | |
| Operation temperature/Humidity | 0℃-45℃ / 5%-95%(non-condensing) |
| Storage Temperature/Humidity | -40℃to 70℃ / 5%-95%(non-condensing) |
| Operation Power | 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC) |
| UPS and Extenison trays | 15mins, 30mins, 60mins Optional. Stainless steel roller trays optional |
| Computer and other | |
| Monitor | High Resolution Color, 1280*1024 LCD Accord, Double 19inch monitors |
| Hard Disk | SEAGATE 1TB 3.5” |
| CPU | CPU-Intel I3-3220 |
| Storage | 4GB |
| Main board | IPC-629A/ATX-581 |
| Control panel | made in 304 stainless steel ,with touch mouse function . |
| Control desk | Extension cable duplex table with wheels |
| Operation System | Windows 7 or XP system . |
| Compliance certificate | |
| International & China | * ISO19001 ; ISO14001 ; OHSMS18001 ; * CE SGS * USA FDA * Radiation Safety Certificate from Ministry of Public Security |
Dimension Size (mm)
