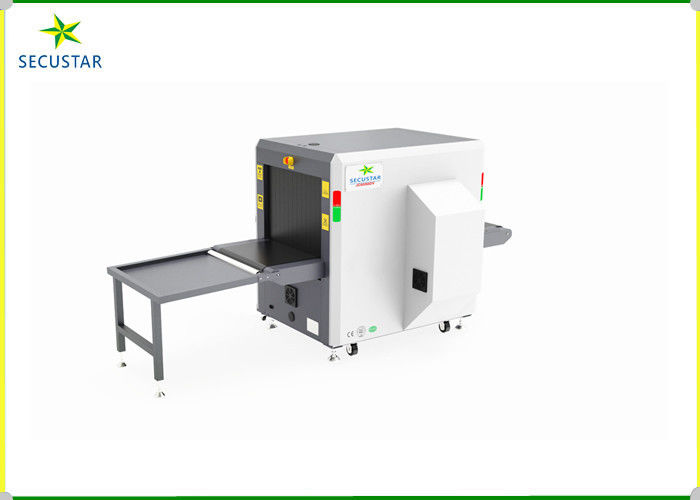

High Penetration 38mm steel X ray Baggage Scanner with 70cm length extension tray

High Penetration 38mm steel X ray Baggage Scanner with 70cm length extension tray

        ★ International Brands Accessories: USA Spellman x-ray sources, Finland DT detectors, Germany Interroll

          brand roller, more stable system performance;

• Leading Technology: parallel data transmission technology, compared with other similar products faster transmission network 10-20 times;
• Fully Functional: not only has the networking equipment, image storage and printing output function and can be customized according to customer demand other functional modules; TIP, Self-diagnostic, user management. Image search and print.
• Easy to Use: the simple user-friendly interface, system self-diagnose and automatic calibration
• HD Display: with high-definition 22” LCD monitors, an image displays more delicate, resolution of 1920 x 1080;
• Mass Storage: 512G harddisk,4GB memory direct to disk storage quantities greater than 150 000,
• Energy Saving and Environmental Protection: the machine can automatically censor objects, luggage before putting the machine up and running; no object when stationary;
• Off one Key: simply rotate the ON/OFF key, and the device automatically boot or shut down safely .
• Environmental Design: Double-deck Lead curtains to protective, it is useful to prevent x rays leakage.
• Computer specification: I5 intel CPU+GPU, windows 10 system, 512G memory Seagate harddisk.
• Intelligent Conveyor: when putting the bags on conveyor, the machine will start to work automatically.

★ Basic Parameters: X ray Generator specs:

  Tunnel size 650 (W) ×505(H) mm The beam direction: vertical and horizontal

   Conveyor speed 0.23 ± 0.22 m / s, Dual Views, two x ray generators

Penetration is 35 mm steel Tube voltage 140-160 kV (adjustable)

Wire resolution is 40AWG guarantee Ray beam divergence angle of 80 °

Conveyor Height 750mm Tube current: 0.5 ~ 0.7 mA (adjustable)

Conveyor Max Load 170 kg Cooling / working periods sealed oil cooling / 100%

Safety film on the ISO1600 security X ray Leakage:<0.5 μ Sv/h ; x ray dose< 0.7 µSv

★ Image Processing System Parameters:

   − Display high-resolution -inch 22” LCD display ,two brand monitors built in mobile control desk.

− Forward scan and reverse scan, Stop, Search indicator, High clear color image, Inverse image, Pseudo color, View previous/ next object,       Baggage counter, Date/ Time display. History records search.

  − Color images displaying 24-bit true color display

  − Dual View Technology with dual X-ray Generators and both Vertical & Horizontal imaging

  − Edge enhancement so that edge of object more clearer .

  − Super image enhancement image details more clearly

  − High penetration displays image contrast in bright areas to improve, so as to penetrate the area clearer,

    TIP function, 7 kinds of color image display, 1-64x Zoom,

   − Low penetration display improves image contrast in dark areas, so as to penetrate the area more clearly

  − Magnifier local amplification, image reverse, organic stripping / inorganic stripping. high density alarm

  − Brightening / dimming brightness of the image to increase / decrease the brightness of dark images

  − Image pull back / front freely, and the current image can be any image processing

  − Image restoration image display restored to its original state

  − Save any image stored images in real time, image form including JPG PNG BMP, output by USB port.

★ Use of The Environment Parameters:

− Operating voltage 220 VAC (± 10%) 50 ± 3 Hz

− Power consumption 0.8KW (Max)

− Noise level <58 dB

− Operating temperature/humidity 0℃-45℃/20%-95%(non-condensing)

− Storage temperature/humidity -20℃-60℃/20%-95%(non-condensing)
